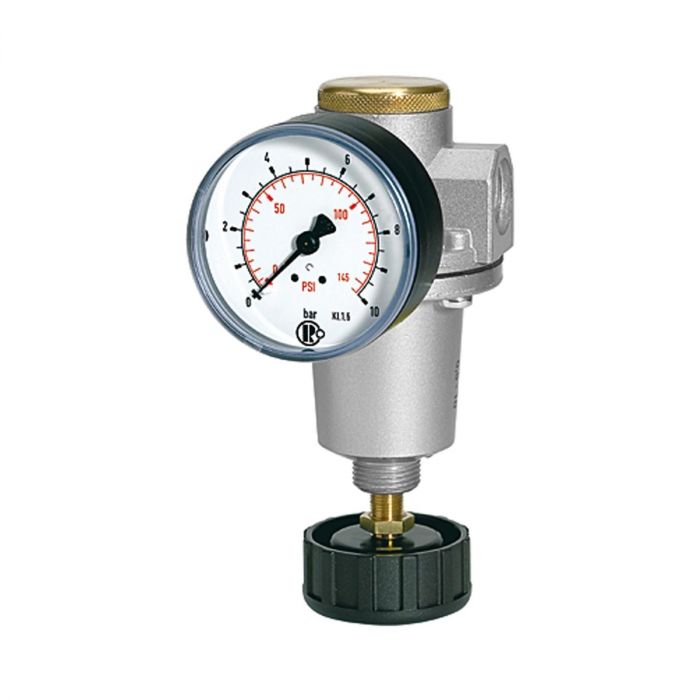

Thread G 1/2

Size 2

Max. input pressure 25 bar

Housing die-cast zinc, painted silver

Sealant NBR

Min. medium temperature -10 °C

Max. medium temperature 60 °C

Min. ambient temperature -10 °C

Max. ambient temperature 60 °C

Flow rate 2200 l/min

Min. control range 0.5 bar

Max. control range 10 bar

Pressure gauge display min. 0 bar

Pressure gauge display max. 16 bar

DN 15

A 70.0 mm

B 145.9 mm

C 34.0 mm

D 111.9 mm

Series Standard

Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar

Country of origin DE

Customs tariff number 84811099

REACH SVHC1 substance name Lead

CAS no. SVHC 1 7439-92-1

RoHS materials notice Rohs compliant

REACH Info contains SVHC substance

Class name EASY
