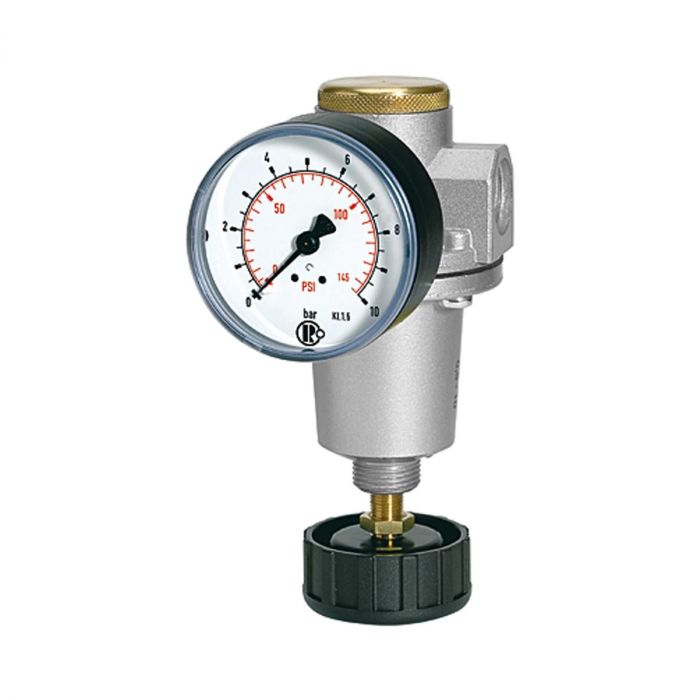

Thread G 3/8

Size 1

Max. input pressure 16 bar

Housing die-cast zinc, painted silver

Sealant NBR

Min. medium temperature -10 °C

Max. medium temperature 60 °C

Min. ambient temperature -10 °C

Max. ambient temperature 60 °C

Flow rate 1000 l/min

Min. control range 0.5 bar

Max. control range 10 bar

Pressure gauge display min. 0 bar

Pressure gauge display max. 16 bar

DN 6

A 54.0 mm

B 129.5 mm

C 32.0 mm

D 97.5 mm

Series Standard

Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar

Country of origin DE

Customs tariff number 84811099

REACH SVHC1 substance name Lead

CAS no. SVHC 1 7439-92-1

RoHS materials notice Rohs compliant

REACH Info contains SVHC substance

Class name EASY
